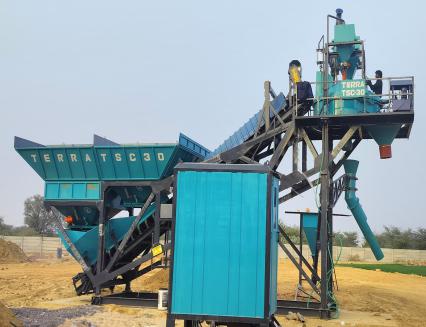

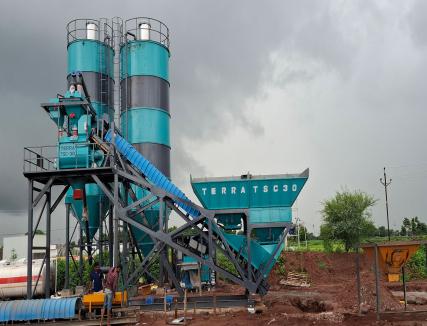

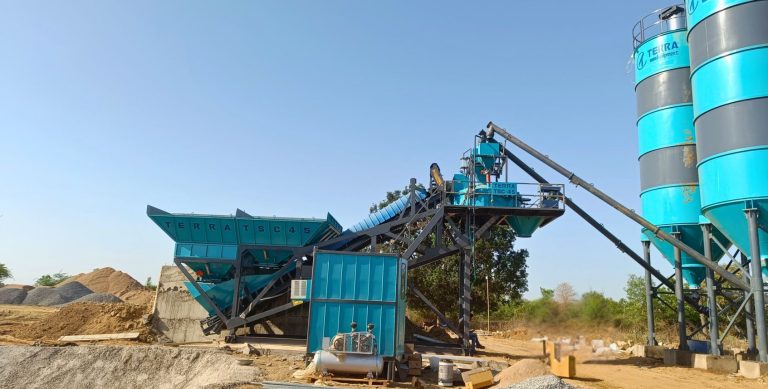

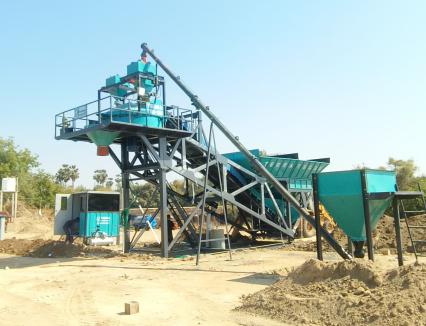

COMPACT CONCRETE BATCHING PLANT
Best design suitable for RMC projects because it consume less space on site and gives accurate output, having whole plant assembly on single chassis with provision of material feeding conveyor so no need to make ramp to feed the bins of the plant, comes with PLC based control panel which makes plant operating easy and trouble free, having availability of fabricated skid to avoid civil foundation work at site at additional cost.
OPTIONAL ACCESSORIES
- Computer SCADA system and software
- Cement storage silos
- Fly ash feeding system and storage silos
- Material feeding conveyor
- Fabricated Skid
Salient Feature
- Whole plant assembly is on single chassis which makes it easy to shift and erect at site.
- Fully automatic PLC based control panel with printing and pen drive facility.
- Unique plug in sockets for cabling which makes it easy and quick to install at site.
- 2 x 2 cross bin feeder to store four different aggregates.
- Digital load cell based weighing of the Cement, Aggregates, Water and Additive for higher accuracy.
- Option to choose Pan / Twin Shaft and planetary mixer as per application.
- Lesser transportation cost as whole plant can be loaded in one 40 Feet Trailer.
- Clear discharge height of 4.0 meter from GL.
- Best suitable for Dam, bridges, CC roads, Commercial complexes and canal works.
- Compact design which occupy lesser space at site for working.
TECHNICAL SPECIFICATION
| Model | TSC 20 | TSC 25 | TSC 30 | TSC 45 | TSC 60 |
|---|---|---|---|---|---|
| Output capacity | 20 M3/Hr. | 25 M3/Hr. | 30 M3/Hr. | 45 M3/Hr. | 60 M3/Hr. |
| Plant assembly | Whole assembly on single chassis | ||||
| Mixer type | Turbo pan type mixer / twin shaft mixer | ||||
| Main reduction gear | Imported Planetary gear box | ||||
| Main mixer drive | 20 HP | 25 HP | 30 HP | 40 HP | 50 HP |
| Material storage system | 2 x 2 cross bin feeder | ||||
| Material storage capacity | 14 CUM | 14 CUM | 20 CUM | 25 CUM | 30 CUM |
| Material weighing system | Digital load cell based weighing system | ||||
| Material feeding system | Through inclined belt conveyor | ||||
| Cement feeding system | Through inclined screw conveyor | ||||
| Water weighing system | Digital load cell based weighing of water in separate tank | ||||
| Admixture dozing system | Digital load cell based auto admixture dozing system | ||||
| Control panel | Fully automatic PLC based control panel | ||||
| Control cabin | Provided | ||||
| Concrete discharge height | 4.2 meter from ground level | ||||
| Total connected power | 48 HP | 53 HP | 63 HP | 77 HP | 98 HP |
| Suggested DG set | 62 KVA | 62 KVA | 82 KVA | 100 KVA | 125 KVA |

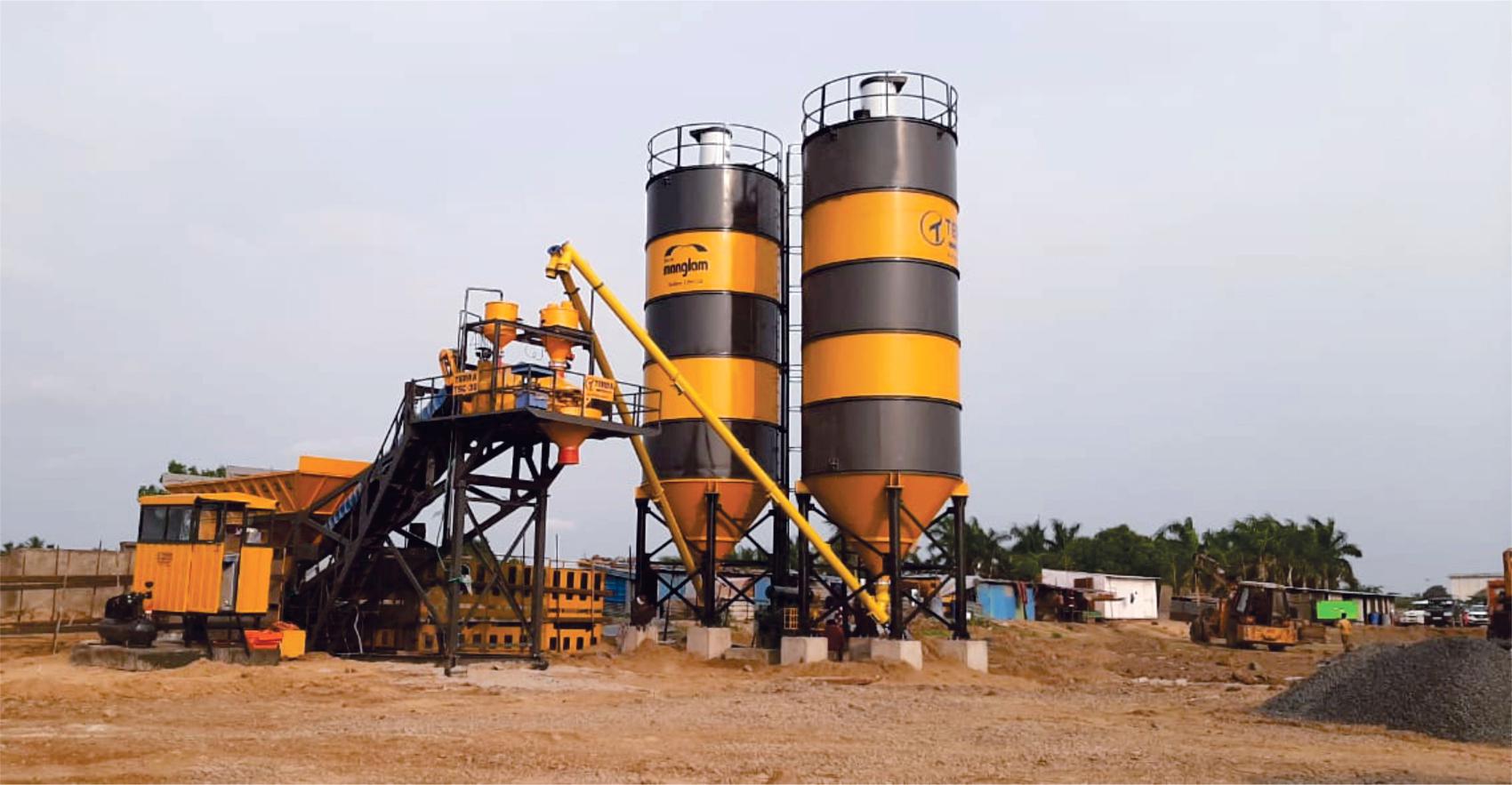

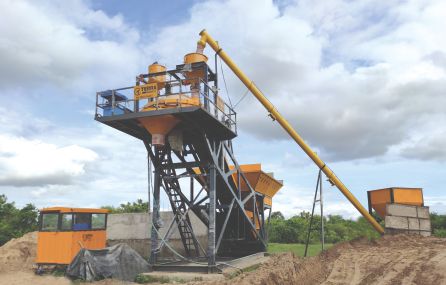

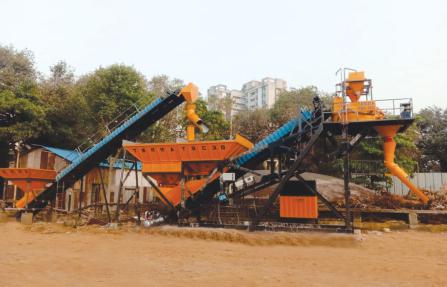

TERRA Equipment Plants Available in Two Color :
